Temperature Bobcat™

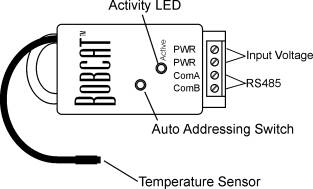

Introduction

The Temperature Bobcat™ is a single point module providing temperature readings from -20ºF to 170ºF.



Specifications

Power:                         Input Voltage                9 - 12V DC or AC

                                    Input Current Max        30mA



Dimensions:                  1.3”W x 2.5”L x 0.6”D

                                    Probe Cable 18”

Operating

       Temperature:         Bobcat™  32ºF to 158ºF

                                    Sensor  -20ºF - 170ºF

Resolution:                    1ºF ± ½º







Setup

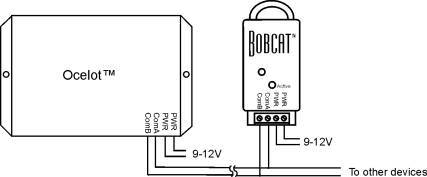

Figure 1. Typical Wiring Diagram

Note: The Bobcat™ may be used outdoors but must be installed in an area so that it will not get wet!







Operation



LED Codes

ON solid – Bobcat™ has not been addressed

Slow Blink – Bobcat™ has a valid address

Fast Blink – Auto address mode active

On solid, then Rapid blink - ADICON™ communications active





Parameter

Function

1

Module Address

5

Gain (do not change) – default 128

6

Positive Temperature Offset

7

Negative Temperature Offset

Table 1. Temperature Bobcat™ Parameters



The Temperature Bobcat™ is calibrated at the factory but small temperature adjustments may be made using parameters 6 and 7.  Parameter 6 is used to increase the temperature reading by 1/16th of a degree increments and parameter 7 will reduce the reading by 16th of a degree increments. The maximum value for parameters 6 and 7 is 255 or 15.9735 degrees.  Either parameter 6 or 7 should be 0.  If both are non-zero then the value of parameter 7 will reduce the effect of parameter 6. For example, if parameter 6 is 80 (+ 5 degrees) and parameter 7 is 32( -2 degrees) the temperature reading will only be increased by 3 degrees.

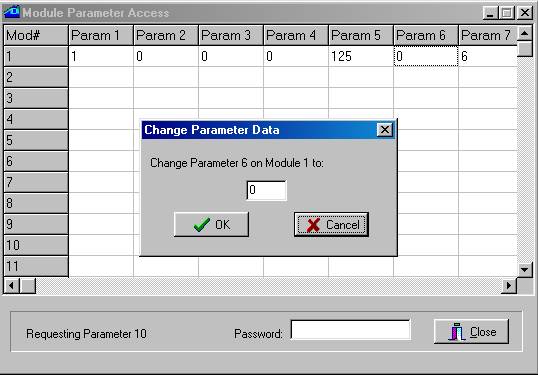

C-Max™ is used to change a parameter value.  Below is a sample screen of the Module parameter utility.  For more information about changing module parameters see the application note Changing Module Parameters.



Viewing Bobcat™ data using C-MAX™

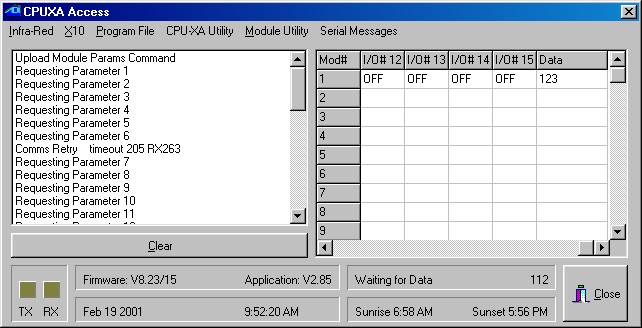

The CPUXA access screen of C-Max™ now has a data field to show the decimal value of data returned by a module.  To view the data field, move the horizontal scroll bar all the way to the right. See the sample screen below.  Data shown for a Bobcat™ module will be offset by 100, that is, the value shown is 100 greater than the actual data.





Accessing the Bobcat™ data

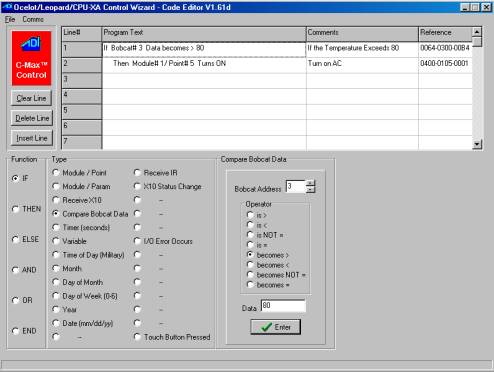

Following is an example of turning on the air conditioner when the temperature exceeds 80 degrees.
